Trailer Dimensions:
46'3"L x 8'2"W x 13'2"H (14.1m x 2.49m x 4.01m)‍

Trailer Weight:
13335 kg (29400 lbs)‍

Stage Footprint*:
37'6"L x 30'8"W x 25'10"H (11.43m x 9.35m x 7.87m)**
*not including additional decking and stairs
**58'9" x 30'8" x 25'10" (17.9m x 9.35m x 7.87m) with 2 x covered wings
**46'9" x 30'8" x 30'9" (1.45m x 9.35m x 9.37m) with typical banner kit (no wings)

Stage Floor Dimensions:
32'L x 24'W x approx 4'-5'H (9.75m x 7.32m 1.23m-1.52m)‍

Additional Stage Deck Options:
Increase to 32' x 28' (9.75m x 8.53m) add decks downstage or upstage
2 x Covered side wings 12' x 24' (3 .66m x 7.32m) each

Total Roof Lifting Capacity:
‍5443 kg (12000 lbs)‍

Total Roof Load Bearing Capacity:
11340 kg (25000 lbs)‍

Rigging Points:
6 x 454 kg (1000 lbs) each‍

4 x Rigging Bars:
‍45 kg / lin m (30 lb / lin ft)‍

2 x Central Roof Trusses:
908 kg (2000 lbs) or 45 kg / lin m (30 lb / lin ft)‍

Up and Downstage Trusses:
‍908 kg (2000 lbs) each or 45 kg / lin m (30 lb / lin ft)‍

2 x Front Overhang Extensions - 1.4m (4'9"):
340 kg (750 lbs) each @ 1.1m (42")‍

2 x Front Overhang Extensions - 2.4m (8'):
159 kg (350 lbs) each @ 1.1m (42")‍

2 x Lateral Overhang Rigging Beams:
1134 kg (2500 lbs) each @ 1.9m (6'4")

Wind Resistance:
185 km/h (115) without windwalls
123 km/h (77 mph)with windwalls

‍Installation Time once Levelling is Complete:
4-6 hours or more* (1 Certified technicians, 5 stagehands)
*largely dependant on scope of stage construction and installed production equipment

Banner Kit Available (banners not included)

Windwall Kit Available

2 x Covered Wings Package Available

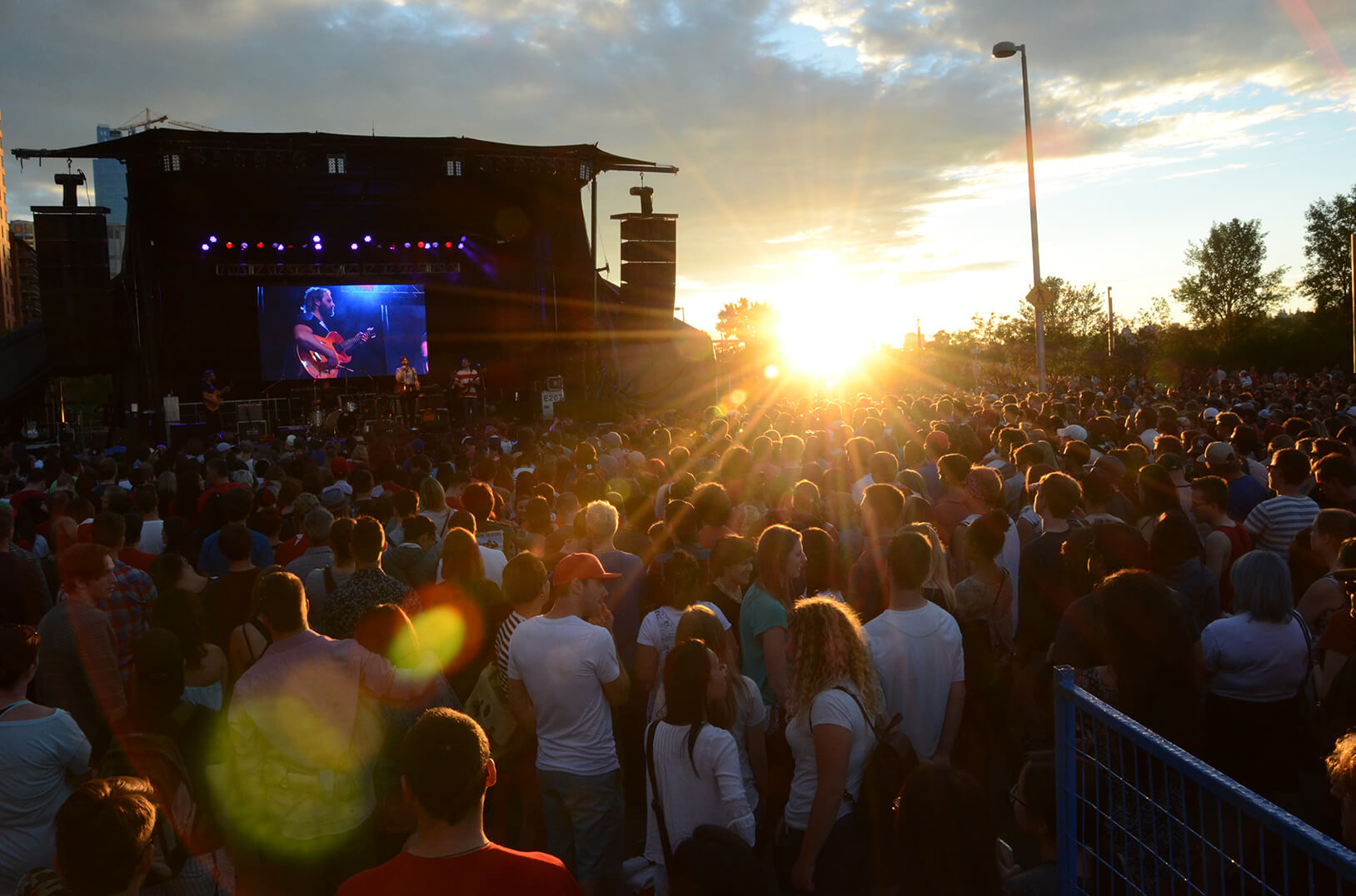

Photos courtesy of stageline.com and FM Systems
